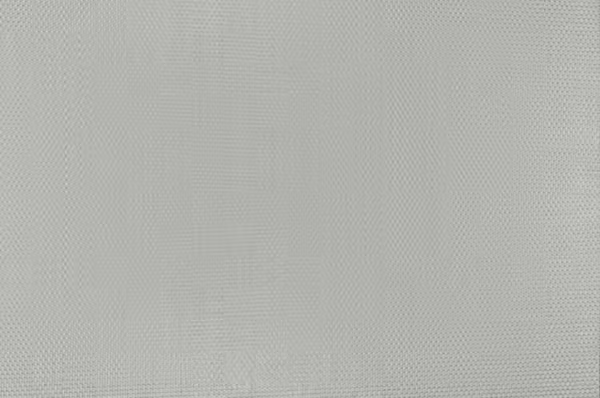

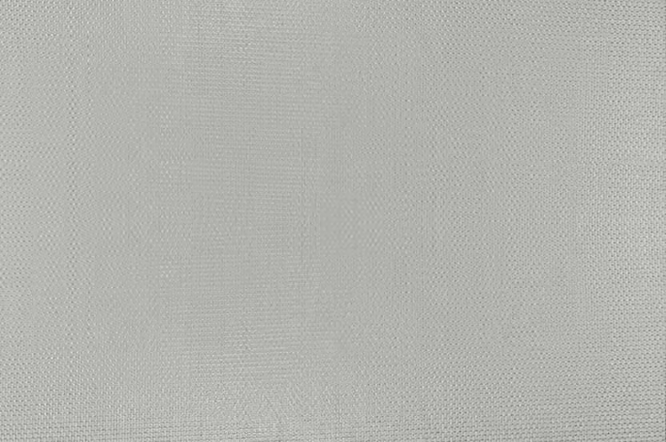

Style 3478-VS-2 is a lightweight vinyl coated fiberglass.
APPLICATIONS
This product is designed for use as a core material for flexible duct applications and can also be used as a facing material for sound attenuating blankets and many other applications.
Lower Continuous Operating Temperature (°F): 20
Upper Continuous Operating Temperature (°F): 150
| Width | Various |
|---|---|
| Roll Length | 800 |
| Color | Silver, Black, White |
| Co-Part | Duplicate |
| Base Fabric | 1636 Untreated |
| Coating Type | VINYL |
| Thickness (in.) ASTM-D-1777 | 0.005 |
| Weight (oz/sy) ASTM-D-3776 | 5.4 |
| Lower Service Temperature Limit (°F) | 20 |
| Upper Service Temperature Limit, Continuous (°F) | 150 |
| Tensile Strength ASTM-D-5035 | 75 |
| Tear Strength ASTM-D-1424 | 1200 |
| Burst Strength ASTM-D-3786 | 200 |
| Flame Resistance - Afterglow (sec) ASTM D-6413 | 2 |
| Flame Resistance - Flameout (sec) ASTM D-6413 | 2 |
| Flame Resistance - Char Length (in.) ASTM D-6413 | 2 |
