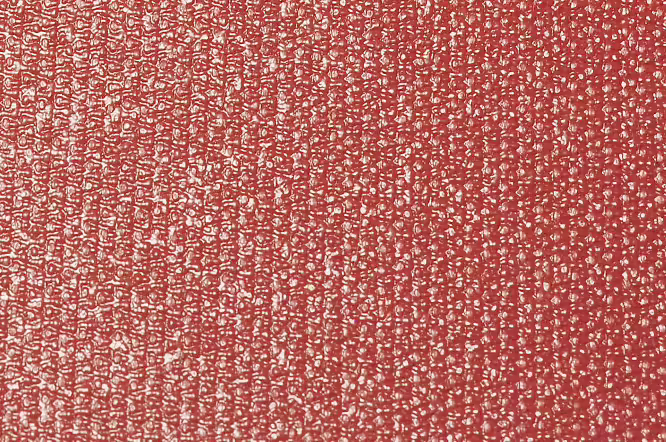

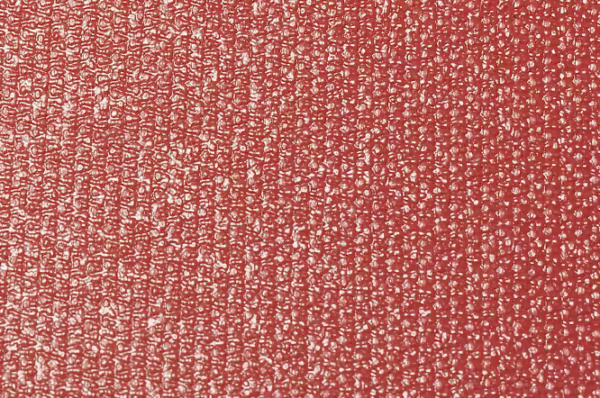

Alpha Maritex Style 3259-2-SR is a fiberglass fabric impregnated with a specially formulated silicone rubber 25% total by weight. It is designed to meet the rigid requirements for use in nuclear reactors. This special high temperature, flame retardant silicone rubber provides greater life and improved resistance to abrasion, flexing, tear and puncture. This product is designed specifically for high temperature ( 500°F ) removable pads, flange and valve covers. This STANDARD DUTY product can be manufactured to meet the requirements of NRC Guide 1.36 and Military Specification MIL-I-24244. ANSI/FM 4950 approved for welding curtains.
ADVANTAGES
Red color, water and oil resistant, flame retardant, low smoke, easily sewn, light weight.
APPLICATIONS
Removable Insulation Pads, Flange Covers, Welding Curtains, Safety Clothing, Equipment Covers, Expansion Joints.
Lower Continuous Operating Temperature (°F): -67
Upper Continuous Operating Temperature (°F): 500
| Width | 40", 60" |
|---|---|
| Roll Length | 50 |
| Color | Red |
| Base Fabric | 332 Untreated |
| Coating Type | SILICONE |
| Thickness (in.) ASTM-D-1777 | 0.015 |
| Weight (oz/sy) ASTM-D-3776 | 17.5 |
| Lower Service Temperature Limit (°F) | -67 |
| Upper Service Temperature Limit, Continuous (°F) | 500 |
| Tensile Strength ASTM-D-5035 | 300 |
| Tear Strength ASTM-D-5587 | 40 |
| Burst Strength ASTM-D-3786 | 400 |
| Flame Resistance - Afterglow (sec) ASTM D-6413 | 1 |
| Flame Resistance - Flameout (sec) ASTM D-6413 | 1 |
| Flame Resistance - Char Length (in.) ASTM D-6413 | 0.0625 |
